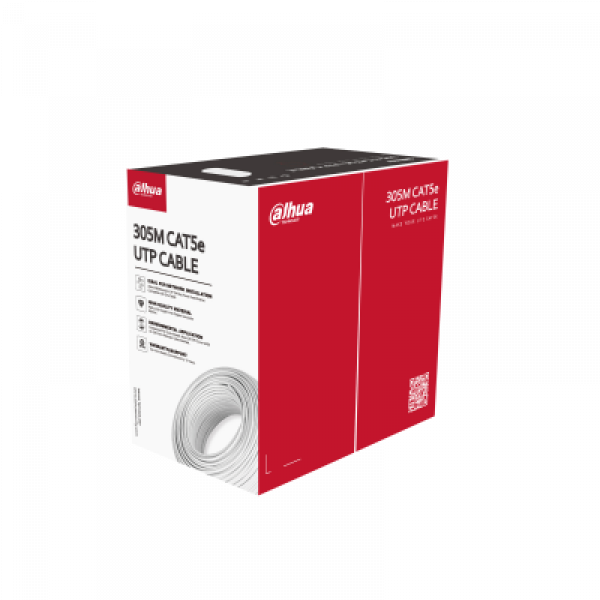

DH-PFM920I-5EUN Dahua Кабель UTP CAT5e

37 500 ₸

Код товара:
Модель: DH-PFM920I-5EUN

Скачать DataSheet

Conductor

Material

Oxygen free copper (99.97% purity)

Diameter

0.45 mm ± 0.01 mm

Insulation

Material

HDPE

Min. Average Thickness

0.18 mm

Diameter

0.81mm±0.1mm

Color (4 Pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Rip Cord

Material

Polyester

Specification

500D

Sheath

Material

PVC

Min. Average Thickness

0.5 mm

Diameter

4.7 mm ± 0.3 mm

Color

White

Electrical

Max. DC Resistance of a Single Conductor

12Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100 ± 15Ω

Near End Cross Talk

≥35.30 dB/100 m@100 MHz

Max. Attenuation

24.2 dB/100 m@100 MHz

Return Loss

≥20.1 dB/100 m@100 MHz

Mechanical

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Packaging

Cable Length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions

364.0 mm × 364.0 mm × 216.0 mm

(14.33" × 14.33" × 8.50") (L × W × H)

Packaging Method

305.0 m (1000.66 ft) a carton,

one master carton with 2 inner cartons

Net Weight

≥7.0 kg (15.43 lb)

Gross Weight

≥8.0 kg (17.64 lb)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

CPR Eca

Transmission Characteristics (100 m at 20°C) (328.08 ft at 68°F)
Frequency (MHz)	Phase delay ≤ ns	IL ≤ dB		TCL≥ dB﹡		EL TCTL ≥ dB﹡		NEXT ≥ dB		PS NEXT ≥ dB
1	n/s	n/s		50.0		35.0		n/s		n/s
4	552.0	4.5		44.0		23.0		56.3		53.3
8	547.0	6.4		41.0		16.9		51.8		48.8
10	545.0	7.2		40.0		15.0		50.3		47.3
16	543.0	9.0		38.0		10.9		47.2		44.2
20	542.0	10.2		37.0		9.0		45.8		42.8
25	541.0	11.4		36.0		7.0		44.3		41.3
30﹡	540.6	12.6		35.2		5.5		43.1		40.1
31.25	540.0	12.9		35.1		n/s		42.9		39.9
62.5	539.0	18.7		32.0		n/s		38.4		35.4
100	538.0	24.2		30.0		n/s		35.3		32.3
Frequency (MHz)	EL FEXT ≥ dB		PS EL FEXT ≥ dB		RL ≥ dB		Delay skew ≤ ns		Zc(Ω)
1	n/s		n/s		n/s		n/s		n/s
4	52.0		49.0		23.0		45.0		100±15
8	45.9		42.9		24.5
10	44.0		41.0		25.0
16	39.9		36.9		25.0
