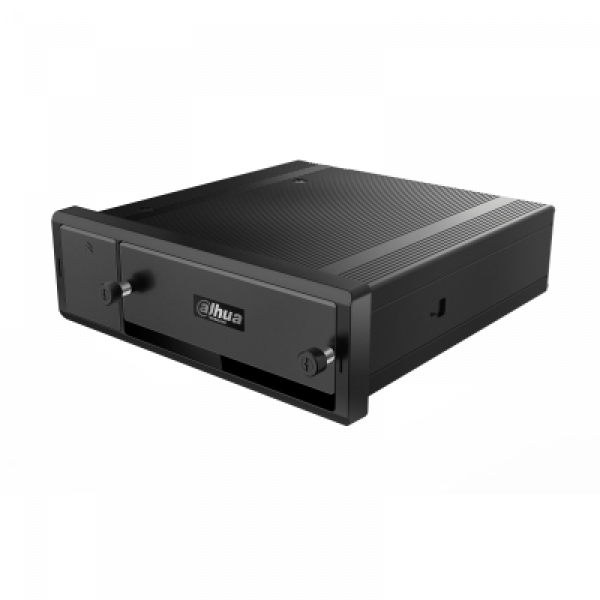

DH-DHI-MXVR4104 Dahua 4-канальный мобильный видеорегистратор H.265 с 1 жестким диском

Цена: по запросу

Код товара:
Модель: DH-DHI-MXVR4104

Скачать DataSheet

System

Main Processor

Embedded microprocessor

Operating System

Embedded LINUX

Video and audio

Input

4 channels HDCVI/AHD/TVI/CVBS (Don’t support audio in when connecting AHD/TVI cameras) + 4 channel 4MP IPC

Two-way talk

1 channel Input, 1 channel Output

Display

Interface

1 VGA, 2 TV

Resolution

800×600

Display Split

1/4/8/9

Privacy Masking

4 rectangular zones (each camera)

OSD

Channel name, time, GPS, license No.

Recording

Video Compression

H.265/smart H.265 /H.264/smart H.264

Audio Compression

G.711A/G.711U/PCM

Resolution

4 ch@1080P realtime recording

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones:396(PAL:22×18,NTSC:22×15), Video Loss & Tampering

Alarm input

9 channels,Alarm1–8 are local alarm input, Alarm 9 is pulse input.

Alarm Output

2 channels,1 relay out, 1 Controllable 12V out

Playback and Backup

Playback

1 channel

Search Mode

Time/Date, Alarm, Motion Detection & Exact search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 HDD

SD card

1 SD card, Up to 256 GB

Network

Ethernet

1 RJ-45 Port (10/100Mbps) and 1 6-pin aviation connector

Wireless Network

Built-in 3G/4G/Wi-Fi module(optional)

GPS

Built-in high accurate GPS module(optional)

Network Function

TCP/IP, UDP, DHCP, FTP, Email, Alarm Server

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Auxiliary Interface

USB

3 USB 2.0

RS232

2 Ports

RS485

1 Port

Heater

Optional

Electrical

Power Supply

DC 6V~36V

Power Consumption

<8.4W (Without HDD)

Environmental

Operating Temperature

-30°C (with heater)~ +70°C (-22°F ~ +158°F)

Operating Humidity

10 ~ 90% RH

Construction

Dimensions

180mm×190mm×50mm (7.0" x 8.7" x 2.0")

Net Weight(without HDD)

1.92Kg (4.23 lb) (without HDD)

Gross Weight

2.83Kg (6.24 lb)

Certifications

FCC

EN50155

ISO7637-2

ISO16750

BIS
