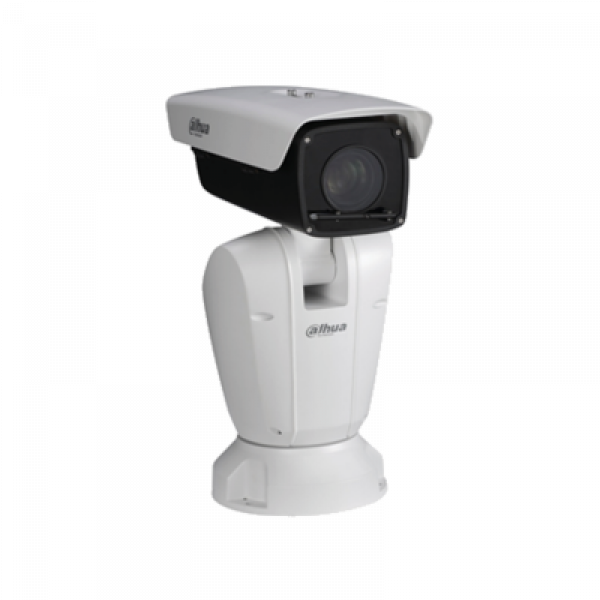

DH-PTZ12240-IRB-N Dahua 2-мегапиксельная IP инфракрасная система позиционирования 40x

DH-PTZ12240-IRB-N Dahua 2-мегапиксельная IP инфракрасная система позиционирования 40x

Цена: по запросу

Код товара:
Модель: DH-PTZ12240-IRB-N

Скачать DataSheet

Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

1024M/64M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 55dB

IR Distance

Distance up to 300m(984ft)

IR On/Off Control

Auto/Manual

IR LEDs

4

Lens

Focal Length

7.9mm ~ 316mm

Max. Aperture

F1.6 ~ F6.1

Angle of View

H: 41.5° ~ 1.1°

Optical Zoom

40x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

3571m(11716ft)

1428m(4685t)

714m(2343ft)

357m(1171ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -90° ~ 45°

Manual Control Speed

Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan:160° /s; Tilt: 60° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after

power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Intelligence

Auto Tracking

Support

IVS

Tripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map

Video

Compression

H.264 / MJPEG

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576/ 704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detetion

Support

Region of Interest

Support

Electronic Image

Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/G.726/AAC

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

1 port(BNC, 1.0V[p-p], 75Ω)

RS485

1

Audio I/O

1/1

Alarm I/O

7/2

Electrical

Power Supply

AC24V/5A(±25%)

Power Consumption

50W, 75W (IR on, Heater on)

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ202.7(mm)×390.8(mm)×472.2(mm)

Net Weight

10.5kg(23.15lb)

Gross Weight

16.5kg(36.38lb)
