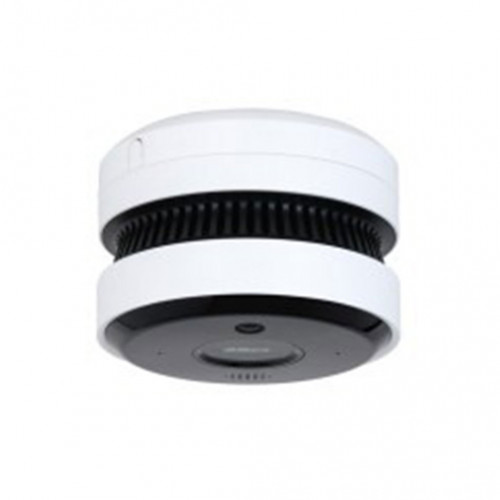

| Smoke Detector |
| Indicators | Standby: Green indicator flashes once per minute Fault: Red indicator flashes once per minute Alarm: Red indicator flashes once per second Self-testing: Red indicator flashes once per second |
| Protection Area | 30 m2–60 m2 |
| Operating Principle | Photoelectric |
| Alarm Method | Sound and LED Indicator |
| Power | 12V DC/PoE and 3V lithium battery |
| Operating Current | ≤ 30uA (Camera excluded) ≤ 300mA (Camera included) |
| Back-up Battery Life | ＞ 3 years |
| Alarm Classification | Smoke alarm, fault alarm, low battery alarm |
| Alarm Sound Pressure | ≥ 80 dB (A) @ 3 m (9.84 ft) |
| Network Camera |
| Appearance | Circular |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3s~1/100000s |
| Minimum Illumination | 0.007Lux (color) 0.003Lux (dark) 0Lux (IR) |
| S/N Ratio | ＞ 56 dB |
| Illumination Distance | Distance up to 20 m (65.62 ft) |
| Illuminator Number | 2 (IR LED) |
| Lens |
| Lens Type | Fixed-focal |
| Mount Type | M8 |
| Focal Length | 2.0 mm |
| Aperture | F2.0 |
| Field of View | Horizontal: 144°; Vertical: 92°; Diagonal: 179.6° |
| Iris Control | Fixed |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Artificial Intelligence |
| AI Event | Flame detection |
| Video |
| Image Setting | Brightness; contrast; sharpness; saturation; gamma |
| OSD | Channel/time/place/voltage of back-up battery |
| Video | Manual record; external alarm; alarm video record; timing record |
| Micro SD Card | Max. 256 GB |
| Compression | H.265; H.264; H.264H; H.264B |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Frame Rate | Main stream: 2592×1944 (1 fps-20 fps) 2688×1520 (1 fps–25/30 fps) 2560×1440 (1 fps–25/30 fps) 2304×1296 (1 fps–25/30 fps) 1920×1080 (1 fps–25/30 fps) Sub stream: D1 (1 fps–20 fps) D1 (1 fps–25/30 fps) Third stream: 1920×1080 (1 fps-17/24 fps) |
| Video Bit Rate | H.264: 32 Kbps–10240 Kbps H.265: 12 Kbps–7168 Kbps |
| Day/Night | Auto (ICR) |
| BLC | Yes |
| HLC | Yes |
| WDR | 90 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Default Frame Rate under Default Resolution | 2048 Kbps (2688 × 1520) |
| Defog | Yes |
| Image rotation, mirroring, flipping | Yes |
| Privacy Masking | 8 areas |
| Language | English; TradChinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian;Vietnamese; Arabic; SpanishEU; Hebrew; Thai; Bahasa Indonesia |
| Audio |
| Audio Interface | Yes |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; AAC; G.723 |
| Audio Sampling Frequency | 8KHz/16KHz/32KHz/48KHz/64KHz |
| Alarm |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; smart motion detection; audio detection; flame detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarm |
| Network |
| Communication | 1 RJ-45 PoE 10M/100M Ethernet ports |
| Protocol | HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP |
| Interoperability | ONVIF; MileStone; Genetec; CGI; PISA |
| User | 10 channels at most |
| Storage | FTP; SFTP; Micro SD card (256G); NAS |
| Browser | IE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+ |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network access |
| Certification |
| Certification | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Port |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input Interface | 2 channels In: 5mA 5V DC |
| Alarm Output Interface | 2 channels Out: 300mA 12V DC |
| RS 485 Port | 1 channel |
| Electrical |
| Operating Power | Adapter: 12V DC(±25%); PoE: 802.3af |
| Power Supply | DC12V+PoE |
| Power Consumption | Basic power consumption: 2.1W (12V DC); 2W (PoE) Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE) |
| Environmental |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Construction |
| Casing | Plastic |
| Product Dimensions | Φ120 mm × 79 mm (Φ4.72" × 3.11" ) |
| Package Dimensions | 164 mm × 153 mm × 111 mm (6.46" × 6.02" × 4.37")(L × W × H) |
| Net Weight | 442 g ( 0.98 lb) |
| Gross Weight | 613 g ( 1.35 lb) |
| Installation | Ceiling mount |
| Power Adapter | Excluded |
| Lens | Included |
