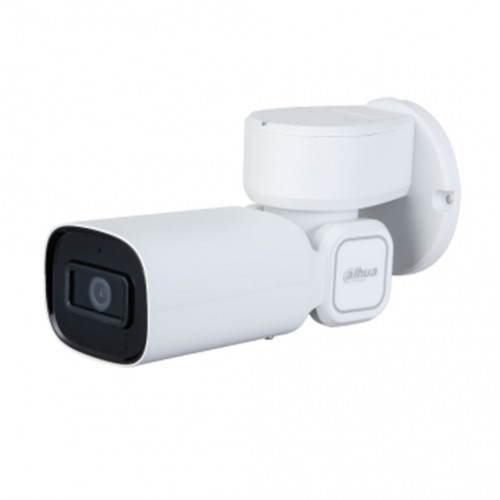

Dahua PTZ1C203UE-GN 2Мп поворотная IP камера

104 250 ₸

Код товара:
Модель: PTZ1C203UE-GN

Скачать DataSheet

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Max. Resolution

2MP

Effective Pixels

1920 (H) × 1080 (V)

ROM

128MB

RAM

256MB

Electronic Shutter Speed

1/3–1/30000s

Minimum Illumination

Color: 0.005Lux@F1.8
B/W: 0.0005Lux@F1.8
0Lux (IR light on)

IR Distance

20m (65.6ft)

IR On/Off Control

Zoom Prio/Manual/SmartIR

IR LED Number

Lens

Focal Length

2.7mm–8.1mm

Aperture

F1.8~F2.7

Field of View

H: 46.43°–106.79°
V: 25.91°–57.88°

Optical Zoom

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.8m–1.7m

Iris Control

Fixed Iris

DORI Distance

Detect

Observe

Recognize

Identify

101.4m (332.68 ft)

40.6m (133.20 ft)

20.3m (66.60 ft)

10.1m (33.14 ft)

PTZ

Pan/Tilt Range

Pan: 0°–180°; Tilt: -5°–55°

Manual Control Speed

Pan: 6°/s; Tilt: 3°/s

Intelligence

IVS

Tripwire; Intrusion; Object Abandoned/Missing

Advanced Intelligence

Heat Map; Face Detection

Video

Video Compression

H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+

Streaming Capability

3 Streams

Resolution

1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576); CIF (352×288)

Video Frame Rate

Main Stream:
1080P/1.3M/720P(1–25/30fps)
Sub Stream 1:
D1/CIF(1–25/30fps)
Sub Stream 2:
720P/D1/CIF(1–25/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Video Bit Rate

H.264: 216Kbps–8192Kbps
H.265: 108Kbps–8192Kbps

Day/Night

ICR

BLC

Support

WDR

120dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Electronic Image Stabilization

Support

Defog

Electronic Defog

Digital Zoom

16x
