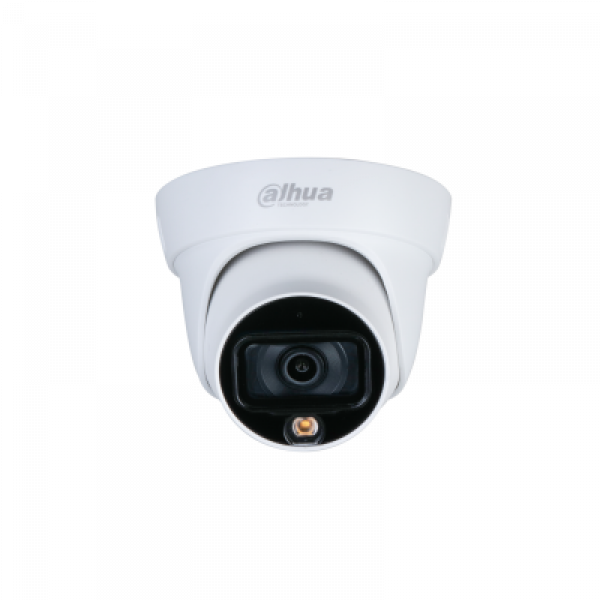

DH-HAC-HDW1239TL-A-LED Dahua Полноцветная видеокамера купольная Starlight HDCVI 2M

DH-HAC-HDW1239TL-A-LED Dahua Полноцветная видеокамера купольная Starlight HDCVI 2M

Цена: по запросу

Код товара:
Модель: DH-HAC-HDW1239TL-A-LED

Скачать DataSheet

Camera

Image Sensor

1/2.8 inch 2.16 Mega Pixels CMOS

Effective Pixels

1920 (H)×1080 (V), 2MP

Electronic Shutter Speed

PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s

Minimum Illumination

0.005Lux/F1.6, 30IRE, 0Lux white Light on

Fill Light (White Light) Distance

Distance up to 20m (65.61ft)

Fill Light On/Off Control

Auto; Manual

Fill Light Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8m/3.6mm

Max. Aperture

F1.6

Angle of View

2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical)
3.6mm: 103.6°x86.9°x46.3°

(diagonalxhorizontalxvertical)

Iris Type

Fixed iris

Close Focus Distance

2.8mm: 0.6m (1.97ft)
3.6mm: 1.2m (3.94ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

38.6m (126.6ft)

15.4m (50.5ft)

7.7m (25.3ft)

3.9m (12.8ft)

3.6mm

55.2m (181.1ft)

22.1m (72.5ft)

11.0m (36.0ft)

5.5m (18.0ft)

Video

Video Frame Rate

CVI:
PAL: 1080@25fps, 720@25fps, 720@50fps;
NTSC: 1080@30fps, 720@30fps, 720@60fps
AHD: PAL: 1080@25fps,720@25fps;
NTSC: 1080@30fps,720@30fps
TVI: PAL: 1080@25fps,720@25fps,720@50fps;
NTSC: 1080@30fps,720@30fps,720@60fps
CVBS: PAL: 960×576H;
NTSC: 960×480H

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; Manual

Gain Control

Auto; Manual

Noise Reduction

2D NR

Smart Light

Yes

Electronic Defog

Yes

Digital Zoom

16X

Mirror

Off/On

Privacy Masking

Off/On (4 area, rectangle)

Certification

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

Built-in mic(-A)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3W (12V DC, white light on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Inner core: metal+plastic; cover: plastic;

pedestal: plastic

Dimensions

φ97mm×85.8mm (φ3.82"×3.38")

Net Weight

0.22Kg (0.49lb)

Gross Weight

0.28Kg (0.62lb)
