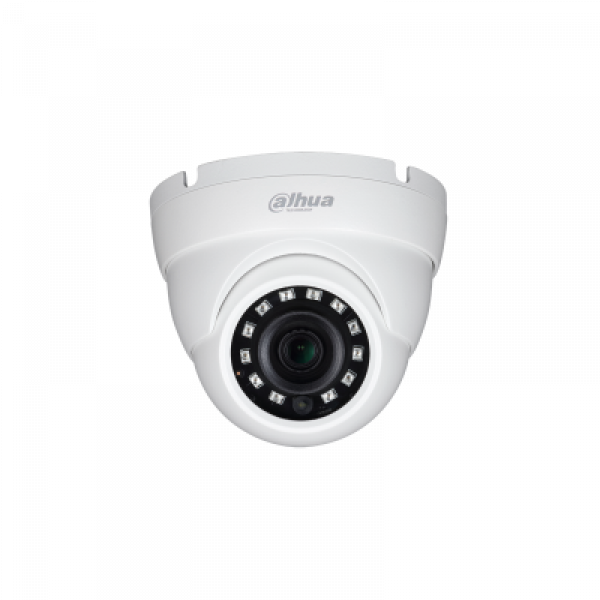

DH-HAC-HDW1801M Dahua Купольная инфракрасная видеокамера 4K HDCVI

Цена: по запросу

Код товара:
Модель: DH-HAC-HDW1801M

Скачать DataSheet

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H)×2160 (V), 4K

Electronic Shutter Speed

PAL: 1/3s-1/100000s
NTSC: 1/4s-1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

IR Distance

Distance up to 30m (98.43ft)

IR On/Off Control

Auto/Manual

IR LEDs

Pan/Tilt/Rotation Range

Pan: 0°-360°
Tilt: 0°-78°
Rotation: 0°-360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm

Max. Aperture

F2.0

Angle of View

2.8mm: 125°×105°×56° (diagonal×horizontal×vertical)

3.6mm: 104°×87°×47° (diagonal×horizontal×vertical)

Iris type

Fixed Iris

Close Focus Distance

1m/1.8m (3.28ft/5.91ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

75m (246ft)

30m (98ft)

15m (49ft)

8m (26ft)

3.6mm

146m (351ft)

58m (141ft)

29m (69ft)

15m (36ft)

Video

Video Frame Rate

CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps
CVBS: PAL/NTSC
AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps
TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

120dB/WDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D&3D NR

Smart IR

Yes

Electronic Defog

Yes

Digital Zoom

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V±30% DC

Power Consumption

Max 4.9W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95%

(non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Dimensions

Φ93.4mm×79.4mm (3.68”×3.13”)

Net Weight

300g (0.66lb)

Gross Weight

380g (0.84lb)

DH-HAC-HDW1801M Dahua Купольная инфракрасная видеокамера 4K HDCVI
