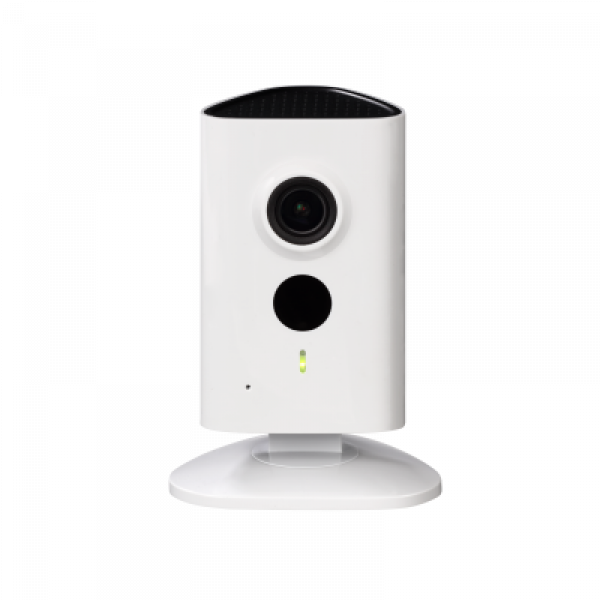

DH-IPC-C35 Dahua 3-мегапиксельная IP видеокамера Wi-Fi серии C

DH-IPC-C35 Dahua 3-мегапиксельная IP видеокамера Wi-Fi серии C

Цена: по запросу

Код товара:
Модель: DH-IPC-C35

Скачать DataSheet

Camera

Image Sensor

1/3” 3Megapixel progressive CMOS

Effective Pixels

2304(H) x1536(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.9Lux/F2.2(Color), 0Lux/F2.2(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 10m(33ft)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.3mm

Max. Aperture

F2.2

Angle of View

H:120°;V:69°

Focus Control

Fixed

Close Focus Distance

N/A

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

Video

Compression

H.264/H.264B/H.264H.MJPEG

Streaming Capability

2 Streams

Resolution

3M(2048×1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/VGA(640 ×480)/

QVGA(320×240)

Frame Rate

3MP(1~20fps)2M(1~25/30fps)

VGA/QVGA(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711A;G.711Mu;AAC

Network

Wi-Fi

Wi-Fi(IEEE802.11b/g/n),50m(open field)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;

Bonjour;Multicast;ICMP;IGMP;

Interoperability

PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage),Local PC for instant recording,Micro SD Card(up to 128GB)

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,Lechange

Smart Phone

iOS,Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

Built-in Mic & Speaker

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC5V 1A

Power Consumption

<4.7W

Environmental

Operating Conditions

-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH

Strorage Conditions

-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Plastic

Dimensions

64.4mm*55.7mm*107mm(2.54'’ x2.19’’x4.21’’)

Net Weight

0.135Kg(0.30lb)

Gross Weight

0.36Kg(0.79lb)
