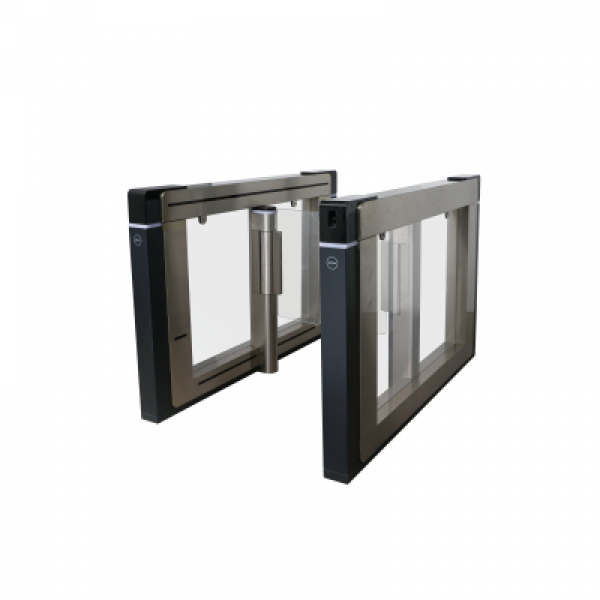

DH-ASGB8XXX-X Dahua Поворотный турникет Dahua

Basic

Dimensions

1,500 mm × 120 mm × 1,000 mm (59.05" × 47.20" × 39.37")

Barrier

Acrylic

Motor

DC brushless servo motor

Light Curtain

20 pairs

IR Detector

10 pairs

Function

Anti-collision

Yes

Anti-pinch

Yes

Memory Mode

Yes

Anti-tailing

Yes

Sound & Light Alarm

Yes

People Counting

Yes

Alarm

Yes

Second Unlock

Yes

Performance

Lock/Unlock Speed

0.6 s–2.4 s (adjustable)

Pass Duration

2 s–60 s (adjustable)

Lock Delay Duration

0 s–60 s (adjustable)

MCBF

≥ 5 million times

Passing Frequency

20–60 people/minute

Passage Width

Standard: 600 mm

Rust Protection Level

210H

Net Passage Width

Standard passage width: 600 mm
At most 1,000 mm acrylic barriers can be customized

Casing

SUS304 2.0 mm

General

Net Weight

Single turnstile module ≤ 89 kg (196.21 lb)
Double turnstile modules ≤128 kg (282.19 lb)

Gross Weight

Single turnstile module ≤ 113 kg (249.12 lb)
Double turnstile modules ≤ 140 kg (308.65 lb)

Power Consumption

Single-motor module turnstile: ≤ 20 W (standby), ≤ 130 W (working)
Double-motor module turnstile: ≤ 40 W (standby), ≤ 260 W (working)

Packaging

Wooden box

Operating Temperature

-10 °C to +60 °C (+14 °F to +140 °F)

Operating Humidity

5%–93% (RH) (non-condensing)

Operating Environment

Indoor
