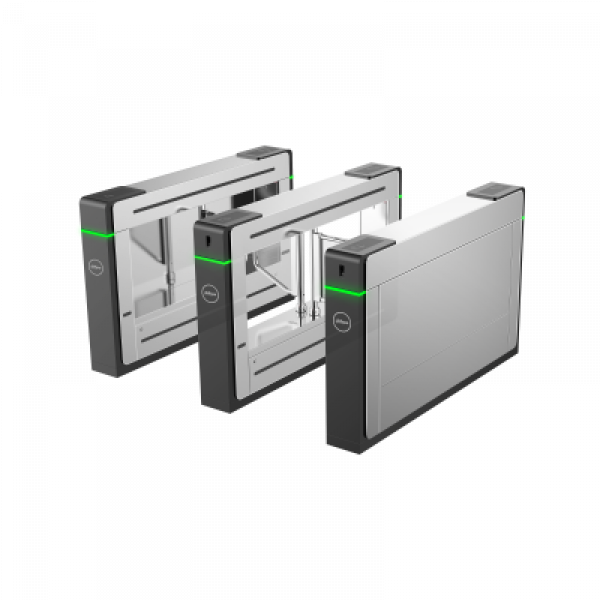

DH-ASGB8XXY-X Dahua Качающийся барьер

Цена: по запросу

Код товара:
Модель: DH-ASGB8XXY-X

Скачать DataSheet

Basic

Product Dimensions

1600 mm × 220 mm × 1000 mm

(62.99"× 8.66"× 39.37")

Surface Processing

Nanometer film

Casing Material

SUS304 1.5 mm

Barrier Material

Acrylic

Motor Type

Brushless servo motor

Light Curtain

20 pairs

IR Detector

10 pairs

Digital Quantity Port

2 I/O ports

Functions

RS-232 port

1 for debugging

Anti-collision

Yes

Anti-pinch

Yes

Memorizing

Yes

Anti-shadowing

Yes

Unlock after Power-off

Not support

Sound and Light Prompt

Yes

Counting

Yes

Performance

Alarm

Yes

Lock and Unlock Speed

0.6 s–1.6 s, adjustable

Passing Duration

2 s–60 s, adjustable

Lock Delay

0 s–60 s, adjustable

Rust Protection Level

210H

IP Grade

IPX4

Lifetime

≥ 5 million times

Passing Frequency

20 people/minute–40 people/minute

General

Noise Grade

Less than 60dB within 1.5 meters

Net Passage Width

Standard passage width: 600 mm
Maximum custom passage width: 1200 mm

Gross Weight

Single-motor: ≤ 127 kg (279.99 lb)
Double-motor: ≤ 137 kg (302.03 lb)

Net Weight

Single-motor: ≤ 100 kg (220.46 lb)
Double-motor: ≤ 110 kg (242.51 lb)

Packing Material

Carton + wooden pallet

Power Supply Mode

AC: 100V–240V 1.5A 50/60HZ

Power Consumption

Single-motor: standby ≤ 20w, working ≤ 100w
Double-motor: standby ≤ 40w, working ≤ 200w

Working Temperature

-30°C to 70°C (-22°F to 158°F)

Working Humidity

10%RH-95%RH

Working Environment

Outdoor
