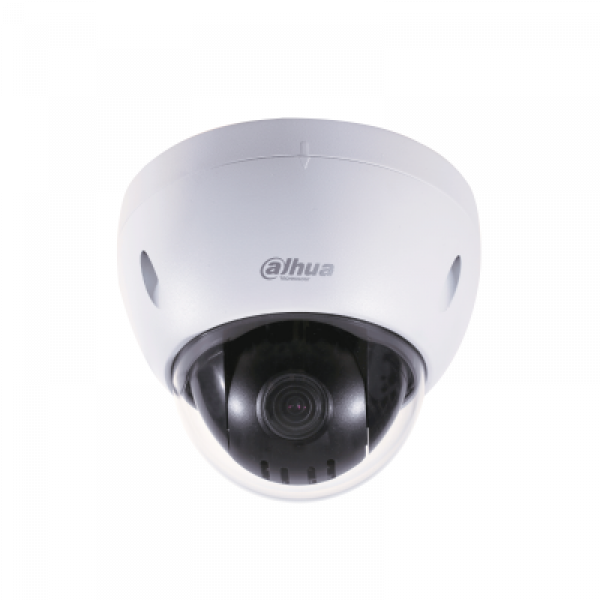

DH-SD32203S-HN Dahua 2-мегапиксельная IP видеокамера PTZ с 3-кратным увеличением

Цена: по запросу


Camera

Image Sensor

1/2.8” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

256M/128M

Scanning System

Progressive

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

3mm~9mm

Max. Aperture

F1.6 ~ F2.7

Angle of View

H: 98.4° ~ 29.7°

Optical Zoom

3x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~240° /s; Tilt: 0.1° ~160° /s

Preset Speed

Pan: 240° /s; Tilt: 160° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD

Intelligence

Auto Tracking

N/A

IVS

N/A

Video

Compression

H.264+/H.264/MJPEG

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/

D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps)

Sub stream: D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264+/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detetion

Support

Region of Interest

N/A

Electronic Image

Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711u(32kbps)/PCM(128kbps)

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

1/1

Alarm I/O

2/1

Electrical

Power Supply

DC12V/1.5A, PoE(802.3af)

Power Consumption

10W

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ160(mm) x 132(mm)

Net Weight

1.3kg(2.87lb)

Gross Weight

1.7kg(3.75lb)
